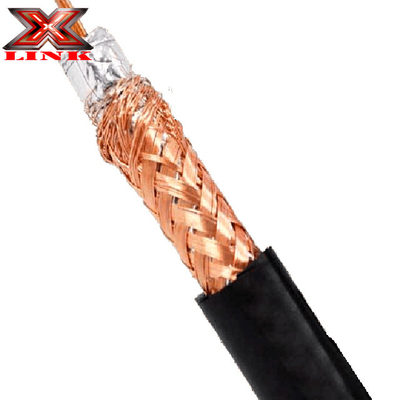

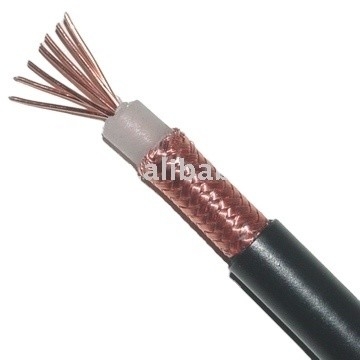

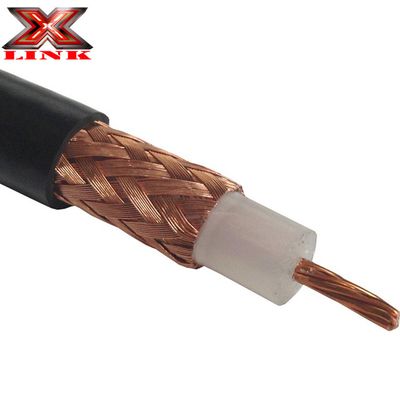

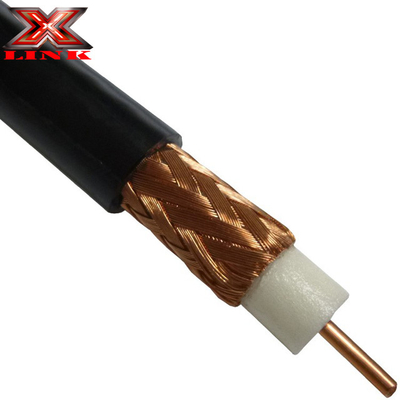

Long Distance Transmission RG213 Coaxial Cable With PE Insulation And Copper Conductor
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | SIHUAN |
| Model Number: | RG213 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 kilometers |
|---|---|
| Price: | Negotiable |
|
Detail Information |
|||
| Conductor Material: | Copper | Insulation Material: | PE |
|---|---|---|---|
| Jacket: | PVC | Number Of Conductors: | 1 |
| Application: | COMMUNICATION, Telecommunications | Coaxial Cable Rg213: | Coaxial Cable RG213 |
| Type: | Coaxial | Lead Time: | 30days |
| Origin: | China | ||
| Highlight: | PE Insulation rg213 coaxial cable,Copper Conductor rg213 coaxial cable,Long Distance Transmission rg213 cable |
||
Product Description
coaxial cable RG213
IMPEDANCE : 50ohms
INNER CONDUCTOR DIAMETER : 7 STRANDS 0.0296"
INNER CONDUCTOR MATERIAL : BARE COPPER
DIELECTRIC DIAMETER : 0.285"
DIELECTRIC MATERIAL : SOLID PE
NUMBER OF SHIELDS: 1
SHIELD MATERIAL : BARE COPPER :
OUT DIAMETER :0.405"
JACKET : PVC
NOMINAL CAPACITANCE (pf/ft) : 30.8
OPERATING TEMPERATURE: -40° to 80 °
MAX OPERATING VOLTAGE (VOLTS RMS) : 5000
NOMINAL ATTENUATION (PER 100FEET)
10 MHZ .66dB
100MHZ 2.20dB
1GHZ 9.0dB
5GHZ 28.00dB
10GHZ 47.00dB
MAXIMUM POWER HANDLING (AVERAGE POWER IN WATTS)
10MHZ 3700
100MHZ 850
1G GHZ 190
5 GHZ 65
10 GHZ 37
