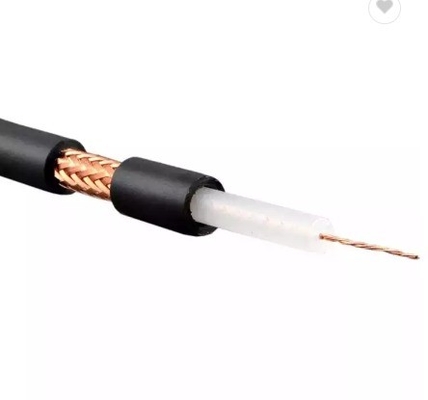

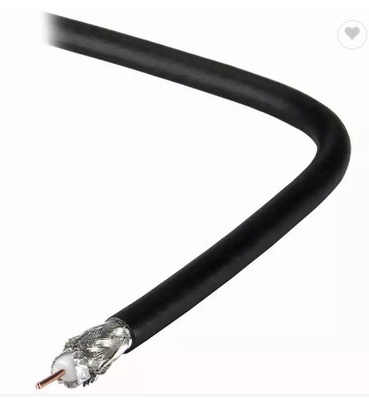

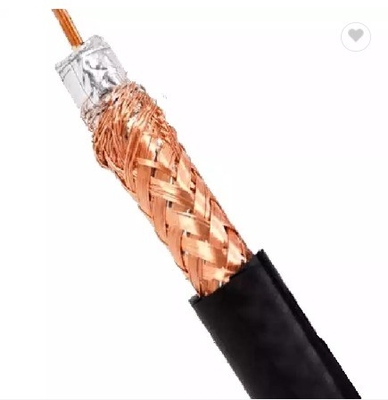

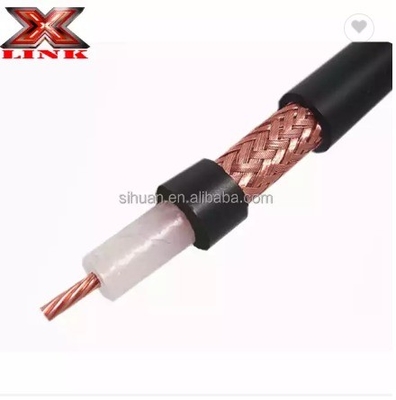

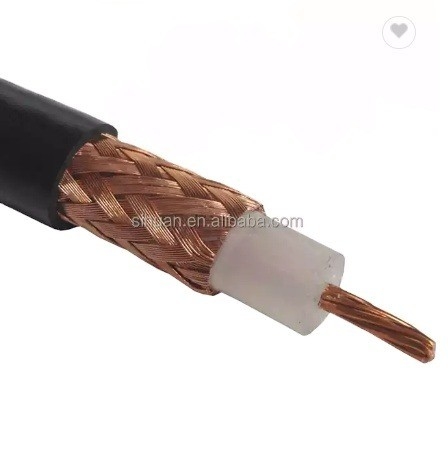

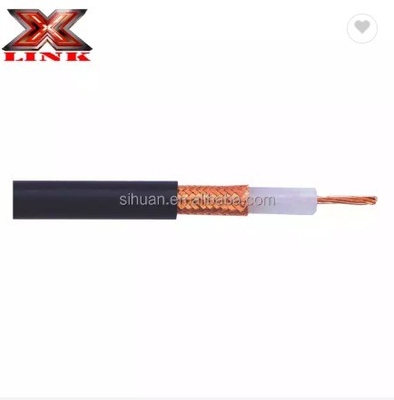

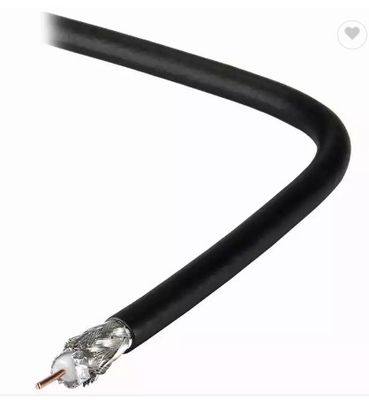

50 Ohm Low Loss Copper Conductor RG213U UHF VHF VB Radio Coaxial Communication Cable
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | sihuan |
| Certification: | CE ROHS |
| Model Number: | rg213 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 rolls |
|---|---|
| Price: | Negotiable |
|
Detail Information |
|||
| Type: | Insulated, Coaxial | Application: | Overhead |
|---|---|---|---|
| Conductor Material: | Copper | Conductor Type: | Stranded |
| Insulation Material: | PE | Rated Voltage: | 12v |
| Item: | RG213 | Application: | Communication |
| Lead Time: | 30days | Origin: | Haiyan, Zhejiang China |
| PACKAGE: | Coiled | Conductor: | COPPER |
| Jacket: | PVC LSZH | Insulation: | PE |
| Highlight: | 50 Ohm rg213u coaxial cable,Low Loss rg 213 u cable,Copper Conductor rg 213 u cable |
||
Product Description
coaixal cable rg58
ar
PROFESSIONAL CABLE MANUFACTUER - WE ARE FACTORY
best DC 12 V car aut
Products Oview
Product Description
ELECTRICAL PROPERTIES:
IMPEDANCE: 75.0 +/- 3.0 Ohms
VELOCITY OF PROPAGATION: 85.0% NOMINAL
ATTENUATION @ 68°F (20°C):
|
@ Frequency MHz |
dB/100 ft. (MAX.) |
dB/100 meters (MAX.) |
|
5 MHz |
0.58 dB |
2.80 dB |
|
55 MHz |
1.60 dB |
5.25 dB |
|
83 MHz |
1.95 dB |
6.40 dB |
|
187 MHz |
2.85 dB |
9.35 dB |
|
211 MHz |
3.05 dB |
10.00 dB |
|
250 MHz |
3.30 dB |
10.82 dB |
|
300 MHz |
3.55 dB |
11.64 dB |
|
350 MHz |
3.85 dB |
12.63 dB |
|
400 MHz |
4.15 dB |
13.61 dB |
|
450 MHz |
4.40 dB |
14.43 dB |
|
500 MHz |
4.66 dB |
15.29 dB |
|
550 MHz |
4.90 dB |
16.08 dB |
|
600 MHz |
5.10 dB |
16.73 dB |
|
750 MHz |
5.65 dB |
18.54 dB |
|
865 MHz |
6.10 dB |
20.01 dB |
|
1000 MHz |
6.55 dB |
|
