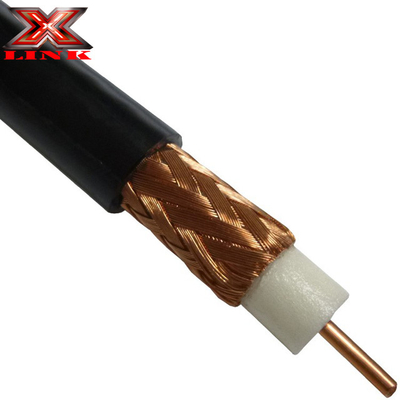

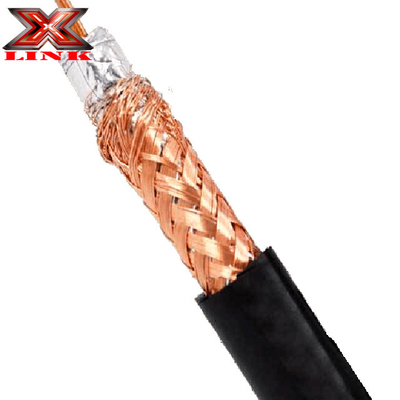

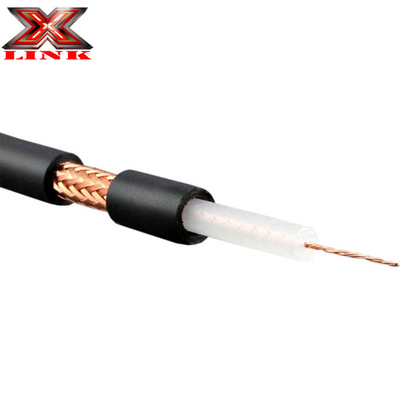

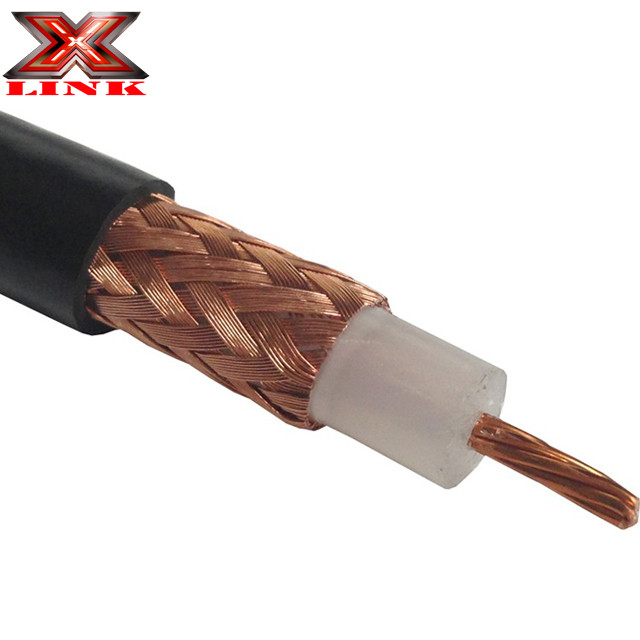

Low Attenuation RG213 Coax Cable 50 Ohm With PVC Jacket And Bare Copper Braid Shielding
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | sihuan |
| Model Number: | rg213 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 rolls |
|---|---|
| Price: | Negotiable |
|
Detail Information |
|||
| Application: | Telecommunication | Conductor Material: | Copper |
|---|---|---|---|
| Jacket: | PVC | Insulation Material: | PE |
| Product Name: | RG213 | MOQ: | 10KM |
| Insulation: | PE | Length: | 300M |
| Shield: | BRAIDING | Material: | Pvc Jacket |
| Keywords: | RG213 | ||
| Highlight: | Low Attenuation rg213 coax cable,50 Ohm rg213 coax cable,PVC Jacket 50 ohm coax cable |
||
Product Description
ar
PROFESSIONAL CABLE MANUFACTUER - WE ARE FACTORY
best DC 12 V car aut
Products Oview
Product Description
ELECTRICAL PROPERTIES:
IMPEDANCE: 75.0 +/- 3.0 Ohms
VELOCITY OF PROPAGATION: 85.0% NOMINAL
ATTENUATION @ 68°F (20°C):
|
@ Frequency MHz |
dB/100 ft. (MAX.) |
dB/100 meters (MAX.) |
|
5 MHz |
0.58 dB |
2.80 dB |
|
55 MHz |
1.60 dB |
5.25 dB |
|
83 MHz |
1.95 dB |
6.40 dB |
|
187 MHz |
2.85 dB |
9.35 dB |
|
211 MHz |
3.05 dB |
10.00 dB |
|
250 MHz |
3.30 dB |
10.82 dB |
|
300 MHz |
3.55 dB |
11.64 dB |
|
350 MHz |
3.85 dB |
12.63 dB |
|
400 MHz |
4.15 dB |
13.61 dB |
|
450 MHz |
4.40 dB |
14.43 dB |
|
500 MHz |
4.66 dB |
15.29 dB |
|
550 MHz |
4.90 dB |
16.08 dB |
|
600 MHz |
5.10 dB |
16.73 dB |
|
750 MHz |
5.65 dB |
18.54 dB |
|
865 MHz |
6.10 dB |
20.01 dB |
|
1000 MHz |
6.55 dB |
|
