Understanding the Differences Between SPT-1, SPT-2, and SPT-3 Wire

Here,we will delve into the differences between SPT-1, SPT-2, and SPT-3 wire, helping you make informed decisions and ensuring your electrical systems are up to code and optimized for your needs.

Introduction

SPT-1, SPT-2, and SPT-3 wires are commonly used in various electrical applications, but understanding their differences is crucial for a successful installation. Let’s explore these wires individually, focusing on their unique characteristics.

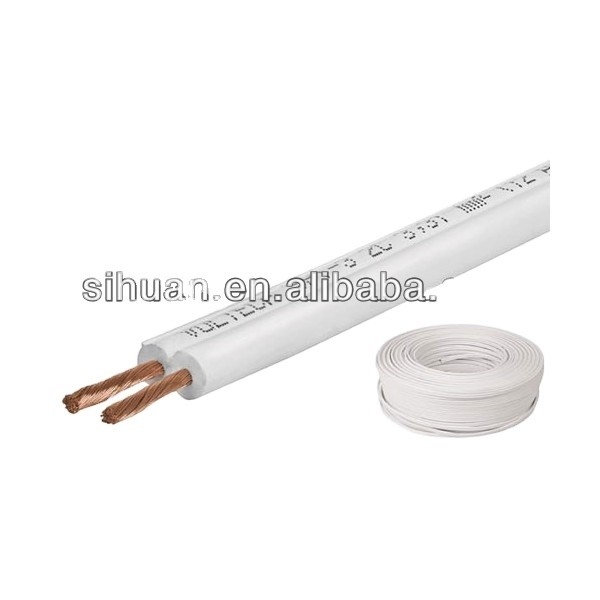

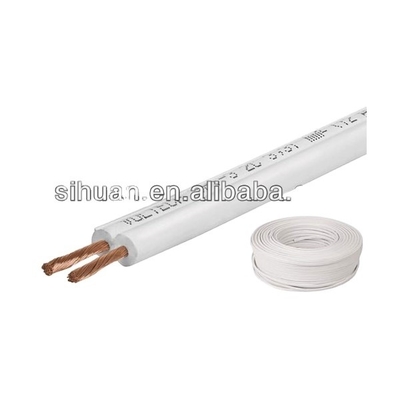

SPT-1 Wire

SPT-1, which stands for “Service Parallel Thermoplastic,” is a versatile electrical wire with several distinctive features. It is predominantly used for light-duty applications. Key characteristics of SPT-1 wire include:

Insulation: SPT-1 wire is insulated with PVC (Polyvinyl Chloride), which provides decent protection against moisture and abrasion.SPT-1 wire has the thinnest insulation of the SPT wires.

Conductor Size: It typically features 20 or 18-gauge conductors,two conductors cord,making it suitable for low-power devices and light fixtures.

Usage: SPT-1 wire is commonly used for small household appliances, lamps, and extension cords.

SPT-2 Wire

SPT-2 wire, which stands for “Service Parallel Thermoplastic 2,” is an upgrade from SPT-1, offering enhanced capabilities for various applications. Here are the distinguishing characteristics of SPT-2 wire:

Insulation: SPT-2 wire also utilizes PVC insulation but is more durable as it features a thicker insulation than SPT-1 Wire, providing better protection against wear and tear.

Conductor Size: It is available in 18 or 16-gauge conductors,two or three conductors cord,which makes it suitable for a wider range of devices and appliances.

Usage: SPT-2 wire is ideal for applications such as power tools, kitchen appliances, and light-duty machinery.

SPT-3 Wire

SPT-3 wire, the most robust of the three, offers high-performance capabilities suitable for heavy-duty applications. Here’s what you need to know about SPT-3 wire:

Insulation: SPT-3 wire features a robust PVC insulation that provides superior protection against harsh environmental conditions.

Conductor Size: It is available in 18, 16, 14, 12 and 10-gauge conductors, two or three conductors cord, making it the go-to choice for high-power devices and appliances.

Usage: SPT-3 wire is commonly used for air conditioners, space heaters, and heavy machinery that demand a high power supply.

Key Differences

To make an informed choice between SPT-1, SPT-2, and SPT-3 wire, it’s essential to grasp the primary differences:

Insulation Quality: SPT-3 has the most robust insulation, ensuring it can withstand harsh environments and resist wear and tear more effectively than SPT-1 and SPT-2.

Conductor Size: The gauge of the conductor varies across these wires, with SPT-3 accommodating the largest range of devices due to its wider selection of conductor sizes.

Intended Use: SPT-1 is best suited for low-power devices, SPT-2 for a broader range of applications, and SPT-3 for heavy-duty machinery and high-power appliances.

If you need further assistance or have questions about selecting the right wire cables for your application, please reach out to us to see how we can help.We Nissei engineering team is on hand to offer you any soulution.
