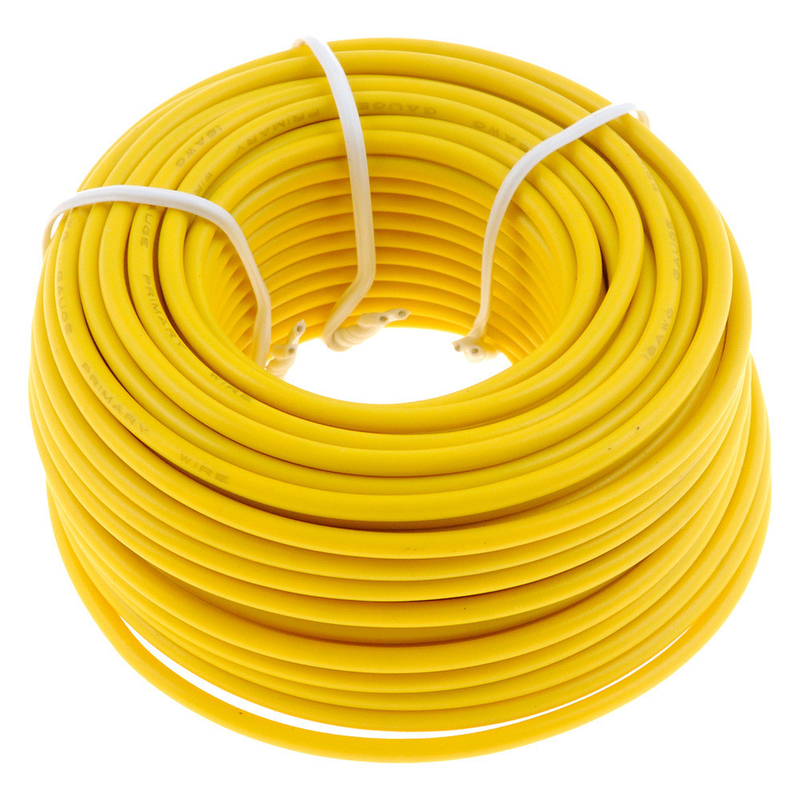

10mm2 8mm2 6mm2 4mm2 2.5mm2 1.5mm2 1.0mm2 PVC Coated Copper Stranded Primary Automotive DC Wire
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | SIHUAN pvc wire |
| Model Number: | pvc wire |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 rolls |
|---|---|
| Price: | Negotiable |
|
Detail Information |
|||
| Conductor Material: | Copper | Insulation Material: | PVC |
|---|---|---|---|
| Jacket: | PVC | Number Of Conductors: | As Customer's Demand |
| Application: | Car Audio | Product Name: | High Quality Standard Copper Cable Pvc Wire |
| Brand: | SIHUAN | Color: | Any Color As You Like |
| Conductor: | Copper | Standard: | Full U.S. Specification CEA-2016 Compliant |
| Origin: | Zhejiang, China | Lead Time: | 30 Days |
| Packing: | Spool, Carton | ||
| Highlight: | 1.5mm2 PVC Coated Copper Stranded Wire,2.5mm2 PVC Coated Copper Stranded Wire,10mm2 PVC Coated Copper Stranded Wire |
||
Product Description
high quality standard copper cable pvc wire
Full U.S. Specification CEA-2016 Compliant
Top quality Car PVC Wire
Conductor's Specification: Copper
Jacket: PVC
Package: Spool
Car Primary Cable PVC Wire
Common Color: Blue, White, Red, Black and orange and other common color are available.
pvc wire specs:
| gauge | core size | stands | OD |
| 12ga | 3.31mm2 | 187 | 4.5mm |
| 14ga | 2.08mm2 | 118 | 3.5mm |
| 16ga | 1.31mm2 | 74 | 3.0mm |
| 18ga | 0.823mm2 | 47 | 2.5mm |
| 20ga | 0.519mm2 | 29 | 2.2mm |
| 22ga | 0.324mm2 | 18 | 2.0mm |
| 24ga | 0.205mm2 | 12 | 1.8mm |
PVC Wire:
Company Information:
Haiyan Sihuan cable & wire Co.,Ltd
We are the factory who can supply all kinds of wire harness/ cables with high quality for electronic and industrial applications such as: computers, home application, audio & video and ect..
We also provide many other wiring kit, according to your order.
