Industrial 14 AWG Stranded Conductor 2 Conductor Electrical Wire for Outdoor Lighting
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | X LINK |
| Certification: | CE ROHS |
| Model Number: | 2 core electric cable 2x2.5mm2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 rolls |
|---|---|
| Price: | Negotiable |
| Packaging Details: | drum package . pallet |
| Supply Ability: | 100000 Roll/Rolls per Month |
|
Detail Information |
|||
| Type: | Insulated | Application: | Industrial |
|---|---|---|---|
| Conductor Material: | Copper | Conductor Type: | Stranded |
| Insulation Material: | PVC | Item: | 2 Core Electric Cable 2x2.5mm2 |
| Application: | House | Jacket: | Pvc |
| Lead Time: | 30 Days | Origin: | Haiyan, Zhejiang China |
| Color: | Black Or White | Conductor: | Annealed COPPER |
| PACKAGE: | Drum | Standard: | BS6500,IEC60227:1993, VDE 0281 |
| Port: | Shanghai | ||
| Highlight: | 14 AWG Stranded Conductor Electrical Wire,Industrial Electrical Wire,Outdoor Lighting Electrical Wire |
||
Product Description
Industrial 14 AWG Stranded Conductor 2 Conductor Electrical Wire for Outdoor Lighting

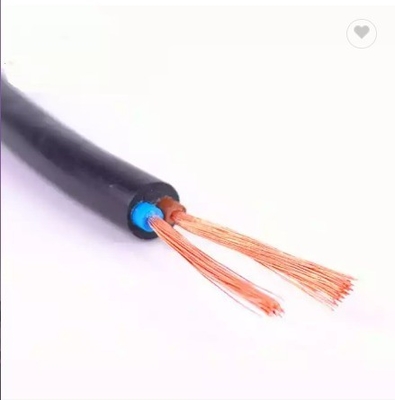

2 Core Electric Cable 2x2.5mm²
Professional Cable Manufacturer - Factory Direct
Product Specifications
| Type | BV BVV RV RVV RVVB VDE FLAT TPS TWIN+EARTH |
|---|---|
| Voltage Rate | 450/750V |
| Cores | 1C, 2C, 3C, 2C+E, 3C+E |
| Nominal Cross Section | 0.50 mm² ~ 25 mm² |
| Application | For general wiring in domestic, commercial and industrial applications including unenclosed, conduit, buried direct or underground duct installations where not subject to mechanical damage. |
| Standard | AS/NZS 5000.2, BS6500, IEC60227:1993, VDE 0281 |
| Max. Operating Temperature | 90°C |
Construction Details
- Conductor: Class 1/2 Plain annealed copper wires, solid or stranded
- Insulation: V-90 PVC
- Sheath: 3V-90 PVC easy tear
- Core color: Red and black for active core, green/yellow for earth core, white for sheath
Ordering Information
| Packing | 100 meters per roll or 500 meters per roll or as per requirement |
|---|---|
| Production Capacity | 50 kilometer/day |
| MOQ | 10000 meters for small size, 5000 meters for middle size, 1000 meters for big size |
| Delivery Time | 10~15 working days |
| Special Properties | Available with flame retardance, fire resistance and other properties upon request |
