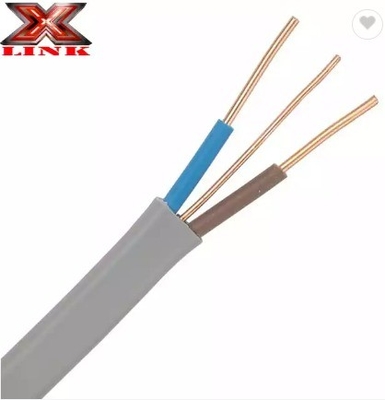

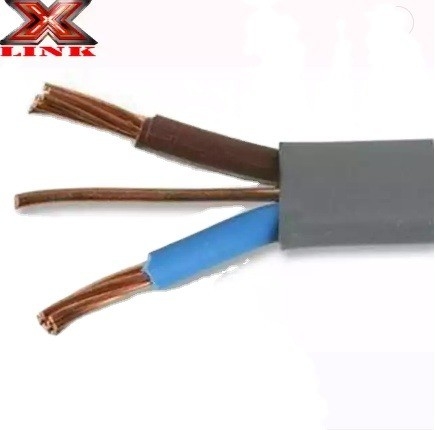

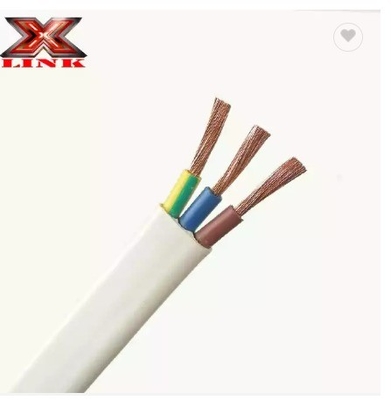

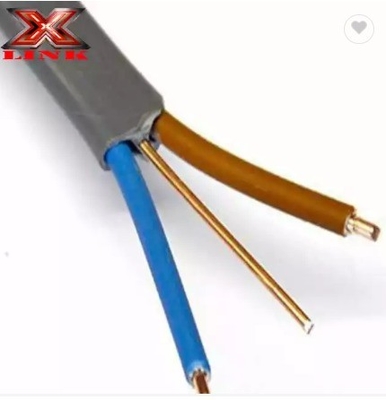

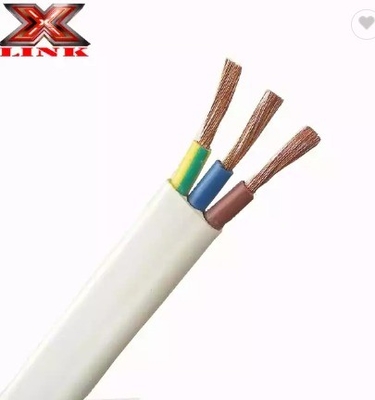

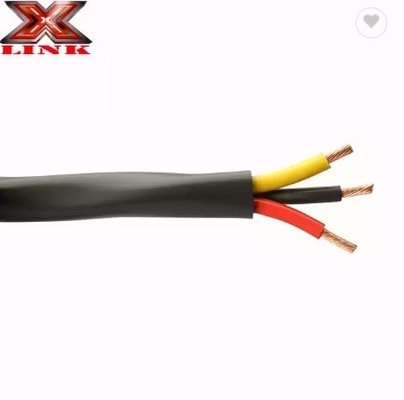

Direct Earth Burial UF-B Flat Wire with Stranded Annealed Copper Conductor and Earth Wire
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | X LINK |
| Certification: | CE ROHS |
| Model Number: | 2.5 mm electrical wire |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 rolls |
|---|---|
| Price: | Negotiable |
|
Detail Information |
|||
| Type: | Insulated | Application: | Industrial |
|---|---|---|---|
| Conductor Material: | Copper | Conductor Type: | Stranded |
| Insulation Material: | PVC | Item: | 2.5 Mm Electrical Wire |
| Application: | House | Jacket: | Pvc |
| Lead Time: | 30 Days | Origin: | Haiyan, Zhejiang China |
| Color: | Black Or White | Conductor: | Annealed COPPER |
| PACKAGE: | Drum | Standard: | BS6500,IEC60227:1993, VDE 0281 |
| Highlight: | Direct Earth Burial Flat Wire,Stranded Annealed Copper Conductor Flat Wire,UF-B Flat Wire |
||
Product Description
2.5 mm electrical wire
PROFESSIONAL CABLE MANUFACTUER - WE ARE FACTORY
best DC 12 V car aut
| Type | BV BVV RV RVV RVVB VDE FLAT TPS TWIN+EARTH | |
| Voltage Rate | 450/750V | |
| Cores | 1 C 2C, 3C, 2C+E, 3C+E | |
| Range of Nominal cross section: | 0.50 mm2 ~ 25 mm2 | |
| Application | These cables are used for general wiring, unenclosed, enclosed in conduit, buried direct or in underground ducts for domestic, commercial and industrial aaplications where not subject to mechanical damage. | |
| Standard | AS/NZS 5000.2 BS6500,IEC60227:1993, VDE 0281 | |
| Constructions | Conductor: Class 1/2 Plain annealed copper wires, solid or stranded Insulation: V-90 PVC Sheath: 3V-90 PVC easy tear Core color: red and black for active core, green/yellow for earth core, white for sheath | |
| Max. Operating Temperature | 90°C | |
| Packing | 100 meters per roll or 500 meters per roll or as per requirement | |
| Production Capacity | 50 kilometer/ day | |
| MOQ | 10000 meters for small size, 5000 meters for middle size, 1000 meters for big size | |
| Delivery time | 10~15 working days | |
| Remark | The cable can be of flame retardance, fire resistance and other property | |
